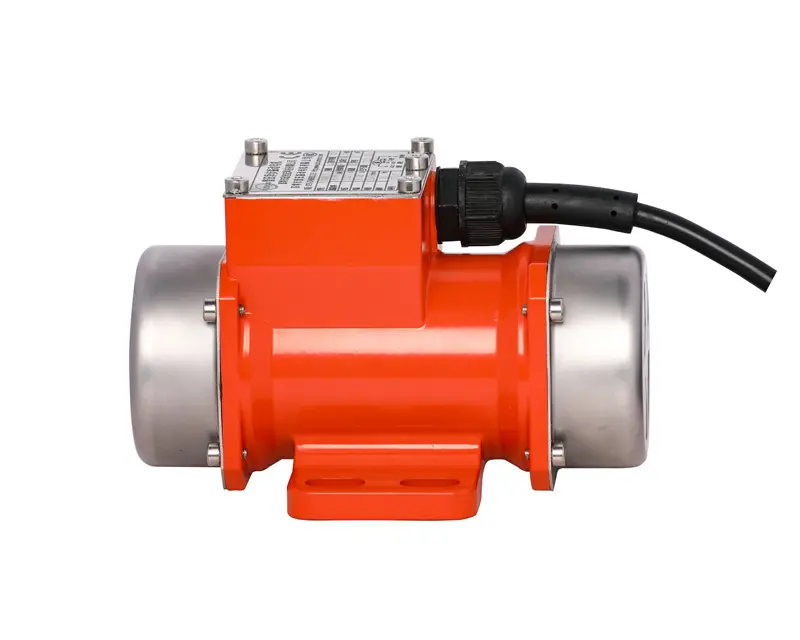

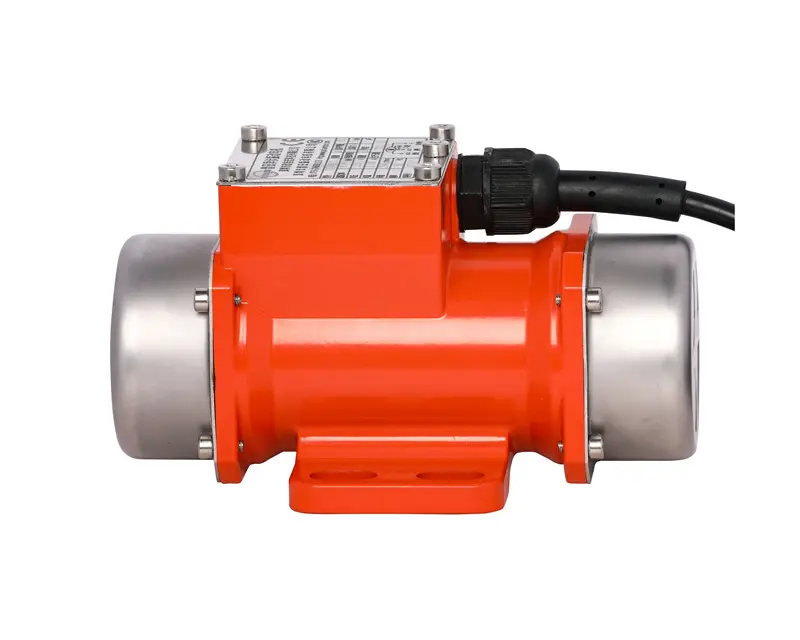

Micro Type AC Single/Three Phase 2 Poles MVE Vibration Motor

  • Micro Type AC Single/Three Phase 2 Poles MVE Vibration Motor
  • Micro Type AC Single/Three Phase 2 Poles MVE Vibration Motor
  • Micro Type AC Single/Three Phase 2 Poles MVE Vibration Motor
  • Micro Type AC Single/Three Phase 2 Poles MVE Vibration Motor
CONTACT US Shenzhen Putian Vibration Motor Co., Ltd.
PREV: Micro Type AC Single/Three Phase 2 Poles PT-MVE Vibration Motor
NEXT: Micro Type AC Single/Three Phase 2 Poles MVB Vibration Motor

Product Parameters

Micro Type AC Single/Three Phase 2 Poles MVE Vibration Motor is a meticulously engineered solution that epitomizes precision and reliability in the realm of AC micro vibration motors. This Micro Type AC Single/Three Phase 2 Poles MVE Vibration Motor, designed with the expertise of seasoned professionals, offers a seamless integration of advanced technology and robust design to meet the diverse needs of industrial applications.
Product Overview:
The Micro Type AC Single/Three Phase 2 Poles MVE Vibration Motor stands out as a versatile and efficient choice for applications demanding precision and controlled vibrations. Operating on AC power, this motor eliminates the need for complex conversion systems, providing a straightforward and efficient solution for various industrial setups.
Key Features:
AC Power Efficiency:
The hallmark of the Micro Type AC Single/Three Phase 2 Poles MVE Vibration Motor is its utilization of AC power, simplifying the power supply requirements. With the flexibility to operate on either single-phase voltage (110V/220V) or three-phase voltage (220V/380V), this motor caters to a wide range of electrical configurations. Custom voltage options are also available, ensuring seamless integration with diverse industrial setups.
Adjustable Vibrational Force:
Tailoring the vibrational force to specific requirements is a breeze with this motor. The Micro Type AC Single/Three Phase 2 Poles MVE Vibration Motor allows for precise adjustments, accommodating forces ranging from 10KG to 80KG. This level of customization ensures that the motor can be fine-tuned to meet the unique needs of different applications.
Two-Pole Design:
The motor features a two-pole design, providing a balance between speed and efficiency. The rotational characteristics of the Micro Type AC Single/Three Phase 2 Poles MVE Vibration Motor make it suitable for a variety of applications where controlled vibrations are critical.
Frequency Options:
Offering flexibility in operation, the Micro Type AC Single/Three Phase 2 Poles MVE Vibration Motor supports both 50Hz and 60Hz frequencies. This adaptability ensures compatibility with diverse power systems and allows users to optimize performance based on their specific requirements.
Robust Construction:
Crafted with durability in mind, the Micro Type AC Single/Three Phase 2 Poles MVE Vibration Motor boasts a robust construction that enhances its reliability in demanding industrial environments. This design focus ensures longevity and consistent performance under varied conditions.
Customization and Adaptability:
The Micro Type AC Single/Three Phase 2 Poles MVE Vibration Motor places a strong emphasis on customization to meet the unique demands of different applications. Whether it's adjusting the vibrational force, accommodating specific voltage requirements, or tailoring the motor for distinct frequencies, the design philosophy revolves around providing a tailored solution for every industrial need.
Conclusion:
In conclusion, the Micro Type AC Single/Three Phase 2 Poles MVE Vibration Motor is a testament to the expertise and dedication of our design team. Its AC power efficiency, adjustable vibrational force, two-pole design, frequency options, and robust construction make it a reliable choice for a wide array of industrial applications. This Micro Type AC Single/Three Phase 2 Poles MVE Vibration Motor, with its focus on customization and adaptability, stands as a practical and efficient solution for those seeking precision in controlled vibrations without relying on terminology like "advanced."

Micro 1/3 Phase  2 Poles 3000/3600 RPM 50/60Hz (PT-MVE Series)

Model number Voltage Current Power Phase Force Frame
No
V A W H Kg kN
PT-MVE10/3M-2 220V/110V 0.11/0.201 15  1  10 0.10  2
PT-MVE15/3M-2 220V/110V 0.113/0.206 20  1  15 0.15  2
PT-MVE20/3M-4 220V/110V 0.151/0.35 30  1  20 0.20  4
PT-MVE60/3M-5 220V/110V 0.24/0.496 50  1  60 0.60  5
PT-MVE80/3M-5 220V/110V 0.34/0.68 70  1  80 0.80  5
PT-MVE20/3-4 380V/220V 0.11/0.19 30  3  20 0.20  4
PT-MVE60/3-5 380V/220V 0.149/0.258 50  3  60 0.60  5
PT-MVE80/3-5 380V/220V 0.184/0.33 70  3  80 0.80  5

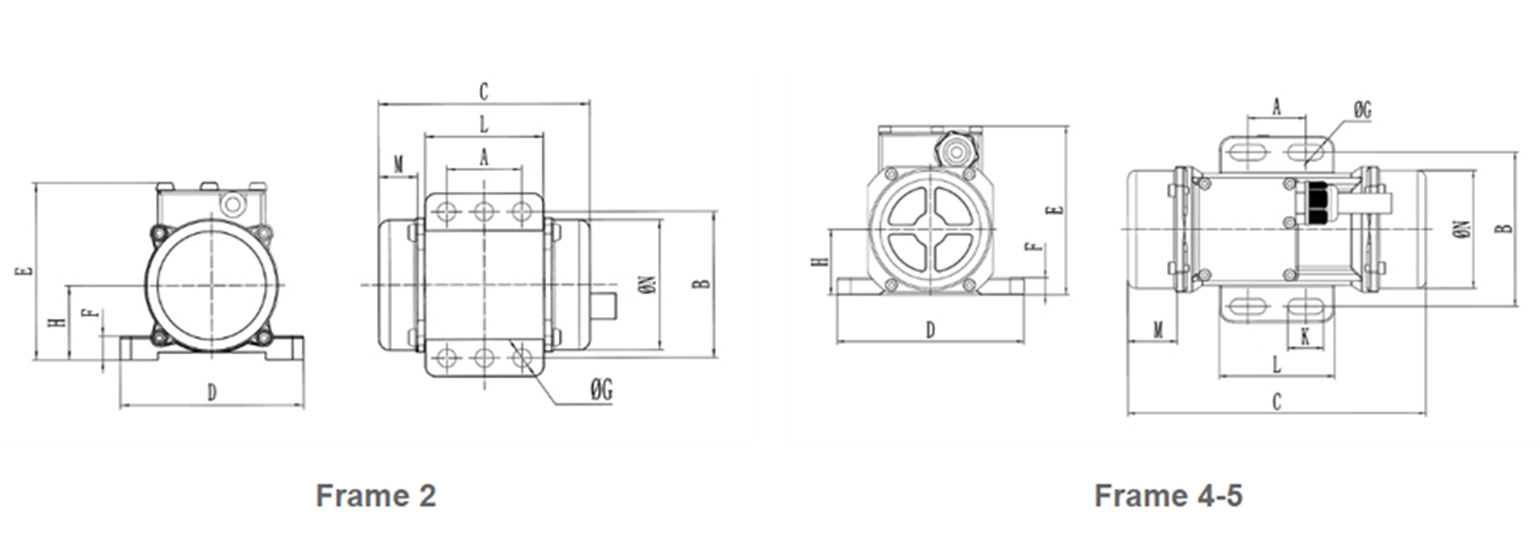

Model number （mm）Installation Dimensions Cable Gland Frame
No
A B C D E F G H L K M N
PT-MVE10/3M-2 35 68 98 85 80 8.5 8.5 32 55 - 18 60.5 - 2
PT-MVE15/3M-2 35 68 98 85 80 8.5 8.5 32 55 - 18 60.5 - 2
PT-MVE20/3M-4 27.5 91.5 150 110 95 9 9 35 55 17.5 27.5 66.1 - 4
PT-MVE60/3M-5 34 91 176 110 99.5 10 9 - 68 21 29 70 M16*1.5 5
PT-MVE80/3M-5 34 91 176 110 99.5 10 9 - 68 21 29 70 M16*1.5 5
PT-MVE20/3-4 27.5 91.5 150 110 95 9 9 35 55 17.5 27.5 66.1 - 4
PT-MVE60/3-5 34 91 176 110 99.5 10 9 - 68 21 29 70 M16*1.5 5
PT-MVE80/3-5 34 91 176 110 99.5 10 9 - 68 21 29 70 M16*1.5 5
CORE SELLING POINTS

Seiko manufacturing · highlighting quality

  • Adjustable Eccentric Block

    Putian vibration motor adopts eccentric block adjustabledesign, the vibration force can be adjusted by adjustingthe angle of the eccentricity block to meet various vibration requirements.

  •
    Fully enclosed design

    The casing of this vibration motor series is made of thickenedmaterial, integrated die-casting, strong and vibration resistant;The edge of the end cover is equipped with sealing groove ando sealing ring, fully closed structure design, dust-proofand moisture-proof function.

  • Brand Bearing

    Putian vibration motors select brand bearing,high precision. Low noise, wear resistance.Have alonger service life.

  • High Precision Rotor Design and Machining

    Rotor adopts MOTORSOLVE design and processing,advanced casting aluminum technology, high precisionCrvC machining, higher precision, stronger wear resistance, more stable operation.

  • Stator all copper coil

    Putian vibration motor adopts pure copperenameled wire, all copper coil, stator is insulated to Fgrade by special vacuum dipping process.

  • Stainless steel shield, hem design process

    Prevent dust accumulation and into the motor, safetyfactor upgrade, to meet higher protection requirements.

Application

Micro series vibration motors can solve the chemical, food, packaging and pharmaceutical industries such as automatic feeding, separation, compaction, screening and other problems, also used for electroplating and other corrosion prevention occasions. Suitable for slightly dry and fine powder, such as plastic, sugar, carbonate, seeds and so on. Can be applied for these vibration machines: miniature silo, miniature vibrating screen, chute, vibrating feeder, vibrating table and vibrating channel, etc.

  • Paper Cutter
  • Shotcrete Machine
  • Solid-Liquid Separator
  • Vibrating Scre
  • Micro Vibrating Screen
  • Vibrating Tables
Vibration motors can be installed on any position, provided that the installation surface is smooth and free of defects. High-resistance screws and nuts should be used to secure the vibration motor to the structure.
