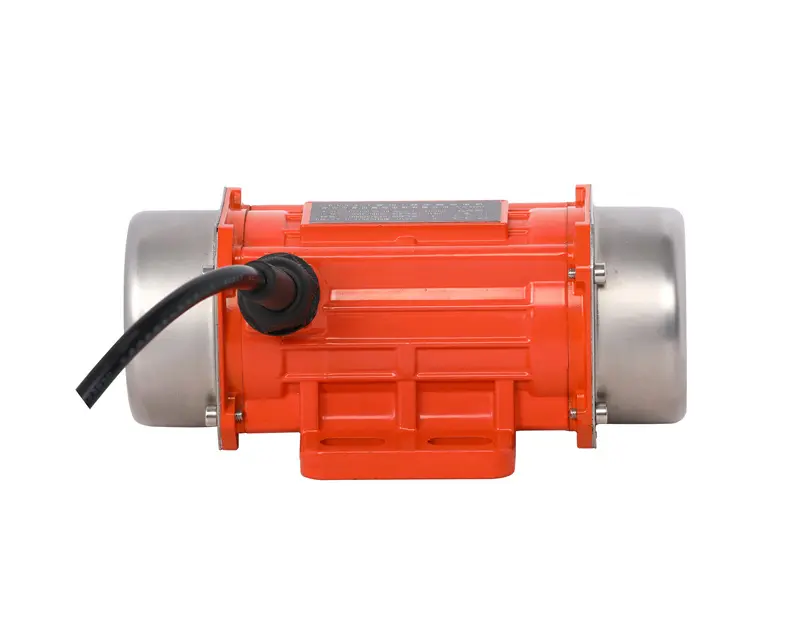

Micro Type AC Single/Three Phase 2 Poles MVB Vibration Motor

Shenzhen Putian Vibration Motor Co., Ltd.

PREV: Micro Type AC Single/Three Phase 2 Poles MVE Vibration Motor
NEXT: No next article

Product Parameters

In the realm of industrial machinery and automation, the significance of vibration motors cannot be overstated. These devices play a pivotal role in a myriad of applications, contributing to the smooth operation of various systems. Among the plethora of options available, the Micro Type AC Single/Three Phase 2 Poles MVB Vibration Motor stands out as an epitome of precision and reliability.

Unraveling the Essence: Micro Type AC Single/Three Phase 2 Poles MVB Vibration Motor

Power Versatility

One of the distinguishing features of the Micro Type AC Single/Three Phase 2 Poles MVB Vibration Motor is its adaptability to a wide range of voltage inputs. Designed to seamlessly integrate into diverse electrical systems, this Micro Type AC Single/Three Phase 2 Poles MVB Vibration Motor can operate efficiently with three-phase voltages of 220V/380V or single-phase voltages of 110V/220V. The flexibility doesn't end there – custom voltages are also accommodated, ensuring compatibility with specific requirements.

Adjustable Vibration Force

Precision is the hallmark of this Micro Type AC Single/Three Phase 2 Poles MVB Vibration Motor. With a user-friendly design, the vibration force of the Micro Type AC Single/Three Phase 2 Poles MVB Vibration Motor is adjustable within the range of 20KG to 80KG. This level of customization empowers users to fine-tune the motor's performance, catering to the nuanced demands of their applications.

Dual Speed Capability

Efficiency meets versatility with the Micro Type AC Vibration Motor, featuring a 2-pole design for speed control. Operating at either 50HZ or 60HZ, users have the flexibility to select the speed that aligns seamlessly with their operational requirements. This dual-speed capability adds a layer of adaptability, making the motor suitable for a diverse array of applications.

Applications Across Industries

Industrial Machinery

In the realm of industrial machinery, where precision and reliability are non-negotiable, the Micro Type AC Single/Three Phase 2 Poles MVB Vibration Motor finds its niche. From conveyor systems to sorting machines, its customizable vibration force ensures seamless integration into various processes, enhancing operational efficiency.

Automation Systems

Automation, a driving force in modern industries, demands components that can keep up with the relentless pace of innovation. The Micro Type AC Vibration Motor, with its adaptable voltage and adjustable vibration force, proves to be an indispensable element in automation systems, contributing to their precision and reliability.

Manufacturing Processes

Manufacturing processes often hinge on the seamless coordination of multiple components. The Micro Type AC Vibration Motor plays a role in this context, providing the necessary vibration force for tasks such as material sorting, sieving, and conveying, optimizing overall efficiency.

Quality Assurance and Reliability

Rigorous Testing

Each Micro Type AC Single/Three Phase 2 Poles MVB Vibration Motor undergoes rigorous testing protocols to ensure compliance with industry standards. From voltage stability tests to prolonged operation under varying conditions, our commitment to quality is unwavering.

Robust Construction

Crafted with durability in mind, the Micro Type AC Single/Three Phase 2 Poles MVB Vibration Motor boasts a robust construction that can withstand the rigors of industrial environments. The meticulous engineering ensures longevity, reducing maintenance requirements and downtime.

Custom Solutions for Tailored Applications

Tailored Voltage Requirements

Understanding the diverse needs of our clientele, we go beyond the standard specifications. Our team is equipped to design and deliver Micro Type AC Vibration Motors tailored to unique voltage requirements, providing a bespoke solution for specific applications.

Conclusion: Elevating Vibration Technology

In the competitive landscape of vibration motors, the Micro Type AC Single/Three Phase 2 Poles MVB Vibration Motor stands tall as a beacon of precision, adaptability, and reliability. Its versatility in voltage compatibility, adjustable vibration force, and dual-speed capability make it a formidable choice across industries. As we continue to push the boundaries of engineering excellence, this motor remains a steadfast companion, contributing to the seamless operation of countless systems worldwide.

Micro 1/3 Phase 2 Poles 3000/3600 RPM 50/60Hz (PT-MVB Series)

Model number	Voltage V	Current A	Power W	Phase PH	Speed		Force		Frame No
Model number	Voltage V	Current A	Power W	Phase PH	50HZ	60HZ	Kg	kN	Frame No
PT-MVB20/3M-3	220V/110V	0.151/0.35	30	1	2940	3450	20	0.20	3
PT-MVB40/3M-6	220V/110V	0.187/0.49	40	1	2940	3450	40	0.40	6
PT-MVB50/3M-6	220V/110V	0.24/0.496	50	1	2940	3450	50	0.50	6
PT-MVB80/3M-6	220V/110V	0.301/0.62	60	1	2940	3450	80	0.80	6
PT-MVB20/3-3	380V/220V	0.11/0.19	30	3	2940	3450	20	0.20	3
PT-MVB40/3-6	380V/220V	0.140/0.242	40	3	2940	3450	40	0.40	6
PT-MVB50/3-6	380V/220V	0.148/0.256	50	3	2940	3450	50	0.50	6
PT-MVB80/3-6	380V/220V	0.175/0.31	60	3	2940	3450	80	0.80	6

Model number	Installation Dimensions（mm）												Cable G land	Frame No
Model number	A	B	C	D	E	F	G	H	L	K	M	N	Cable G land	Frame No
PT-MVB20/3M-3	27.5	91.5	166	110	69	9	9	35	55	17.5	33.5	66	M16*1.5	3
PT-MVB40/3M-6	34	91	176	110	75.5	10	9	38	68	21	29	69.6	M16*1.5	6
PT-MVB50/3M-6	34	91	176	110	75.5	10	9	38	68	21	29	69.6	M16*1.5	6
PT-MVB80/3M-6	34	91	176	110	75.5	10	9	38	68	21	29	69.6	M16*1.5	6
PT-MVB20/3-3	27.5	91.5	166	110	69	9	9	35	55	17.5	33.5	66	M16*1.5	3
PT-MVB40/3-6	34	91	176	110	75.5	10	9	38	68	21	29	69.6	M16*1.5	6
PT-MVB50/3-6	34	91	176	110	75.5	10	9	38	68	21	29	69.6	M16*1.5	6
PT-MVB80/3-6	34	91	176	110	75.5	10	9	38	68	21	29	69.6	M16*1.5	6

Adjustable Eccentric Block
Putian vibration motor adopts eccentric block adjustabledesign, the vibration force can be adjusted by adjustingthe angle of the eccentricity block to meet various vibration requirements.
Fully enclosed design
The casing of this vibration motor series is made of thickenedmaterial, integrated die-casting, strong and vibration resistant;The edge of the end cover is equipped with sealing groove ando sealing ring, fully closed structure design, dust-proofand moisture-proof function.
Brand Bearing
Putian vibration motors select brand bearing, high precision. Low noise, and wear resistance. Have a longer service life.
High Precision Rotor Design and Machining
Rotor adopts MOTORSOLVE design and processing,advanced casting aluminum technology, high precisionCrvC machining, higher precision, stronger wear resistance, more stable operation.
Stator all copper coil
Putian vibration motor adopts pure copperenameled wire, all copper coil, stator is insulated to Fgrade by special vacuum dipping process.
Stainless steel shield, hem design process
Prevent dust accumulation and into the motor, safetyfactor upgrade, to meet higher protection requirements.

Application

Micro series vibration motors are suitable for slightly dry and fine powder materials such as plastic, sugar, carbonate, and seeds. They can be used to solve problems in the chemical, food, packaging and pharmaceutical industries, such as automatic feeding, separation, compaction, and screening. They can also be used for electroplating and other corrosion prevention applications. These vibration motors can be applied to miniature silos, vibrating screens, chutes, vibrating feeders, vibrating tables, and vibrating channels.

Paper Cutter
Shotcrete Machine
Solid-Liquid Separator
Vibrating Scre
Micro Vibrating Screen
Vibrating Tables

Vibration motor can be installed on any position. The installation position must be smooth and no defect, use new and high resistance screws and nuts to install the vibration motor on the structure.
